Lap Joint Flange
Flange configuration used with a compatible stub end in piping systems.
Flange Type
Enquire Now ↗
A comprehensive range of forged and machined flanges for industrial applications. Explore multiple flange types, pressure classes, materials and finish options for your project requirements.
Munish Forge Limited manufactures a range of forged and machined flanges for applications including oil and gas, petrochemical, power plants and heavy engineering. The range includes Slip-On, Blind, Threaded, Socket Weld, Lap Joint, Weld Neck, Reducing and RTJ flange types. Product selection depends on the required size, pressure class, material and applicable specification.
Browse the main flange configurations available in our product range. Contact our team for specific sizes and requirements.

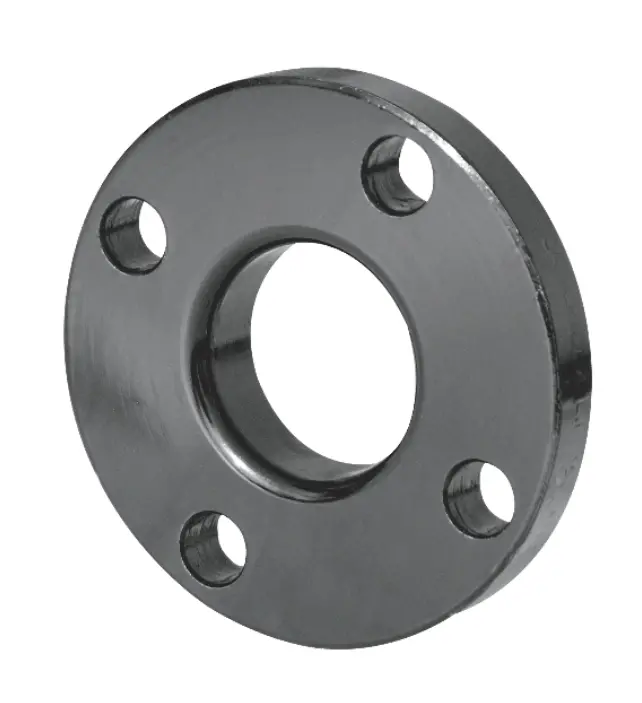

Flange configuration used with a compatible stub end in piping systems.

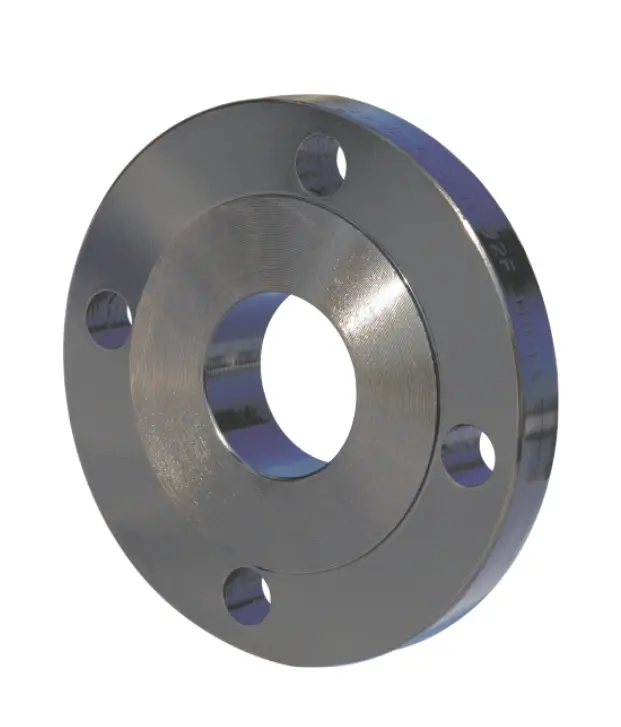

Available in configurations with hub and without hub, subject to requirements.

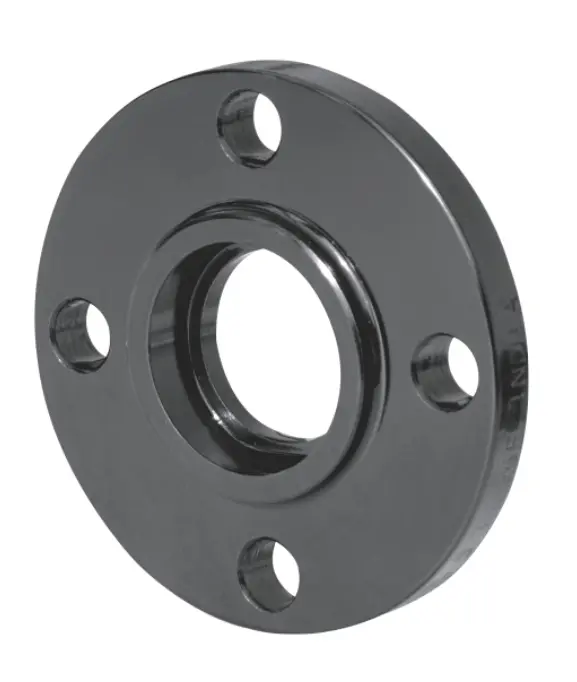

Socket weld flange configuration for applicable piping connections.

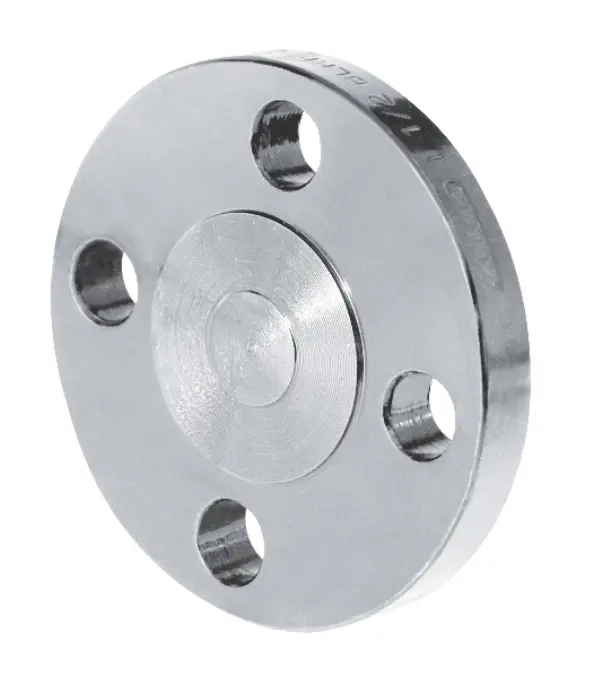

Used to close off a piping end or equipment opening in a compatible system.

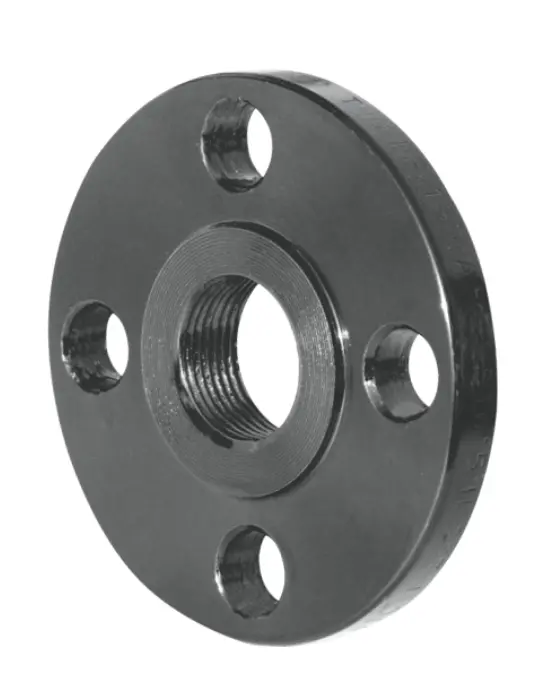

Threaded connection configuration for compatible piping requirements.

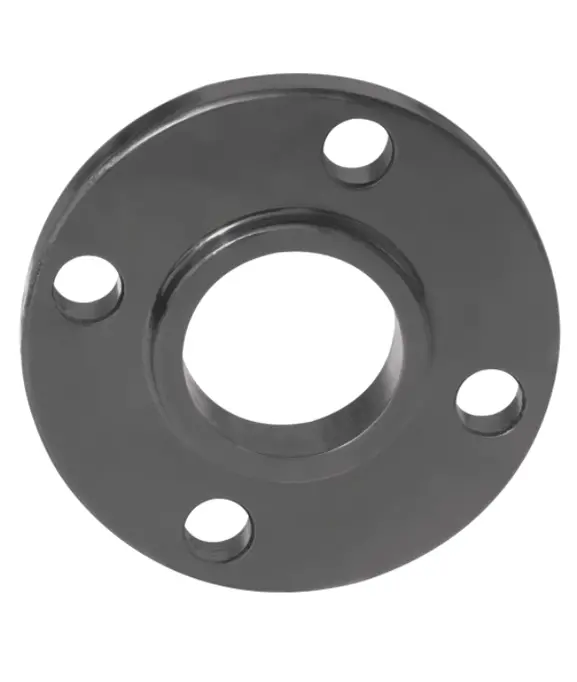

A slip-on configuration for suitable pipe connection and installation needs.

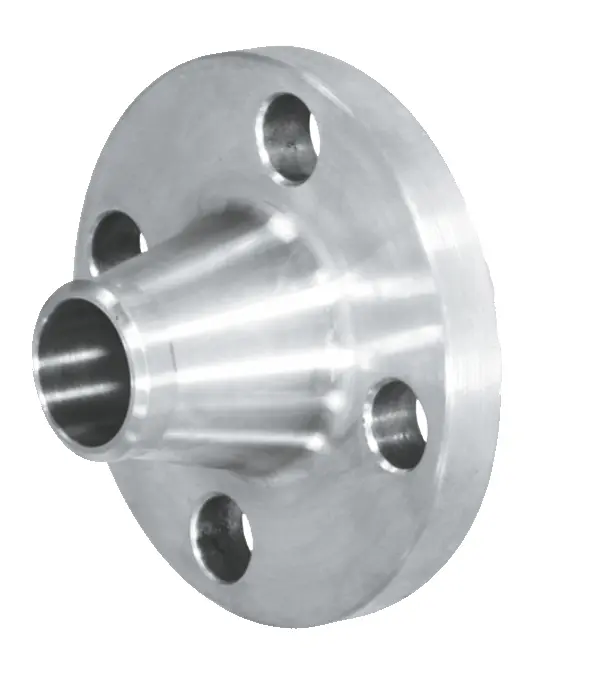

Flange with a tapered hub design for suitable butt-weld connections.
RTJ flange type listed in the product range. Confirm the required configuration with our team.
The following ranges are based on the current product page. Confirm the exact type, schedule and dimensions for your order.
| Pressure Class | Size Range | Types / Specifications Listed |
|---|---|---|
| 150 Lbs | ½″ to 16″ NPS | SO, BLD, WN, SW, LJ, THD, RTJ, STD, XH, XXH, SCH 80, SCH 160 |
| 300 Lbs | ½″ to 12″ NPS | SO, BLD, WN, SW, LJ, THD, RTJ, XH, XXH, SCH 80, SCH 160 |
| 600 Lbs | ½″ to 10″ NPS | SO, BLD, WN, SW, LJ, THD, RTJ, STD, XH, SCH 80 |
| 900 Lbs | 2″ to 4″ NPS | WN, STD, XH, XXH, SCH 80, SCH 120, SCH 160 |
| 1500 Lbs | 2″ to 4″ NPS | BLD, WN, STD, XH, XXH, SCH 80, SCH 120, SCH 160 |
| 2500 Lbs | 2″ to 4″ NPS | BLD, WN, STD, XH, XXH, SCH 80, SCH 120, SCH 160 |
| Reducing | 1″ × ½″ to 8″ × 6″ NPS | Reducing flanges with hub and without hub |
| Large Diameter | 14″ to 16″ NPS | Available on request |
Material, dimensional requirements and finish options are important when selecting industrial flanges. Refer to the following information listed for this product range and confirm the required specification before ordering.
The manufacturing capabilities below are listed on the Munish Forge flanges page and reflect the facilities described there.
Contact Munish Forge Limited to discuss flange types, pressure classes, material specifications and your industrial requirements.
