Adjustable Props and Jacks

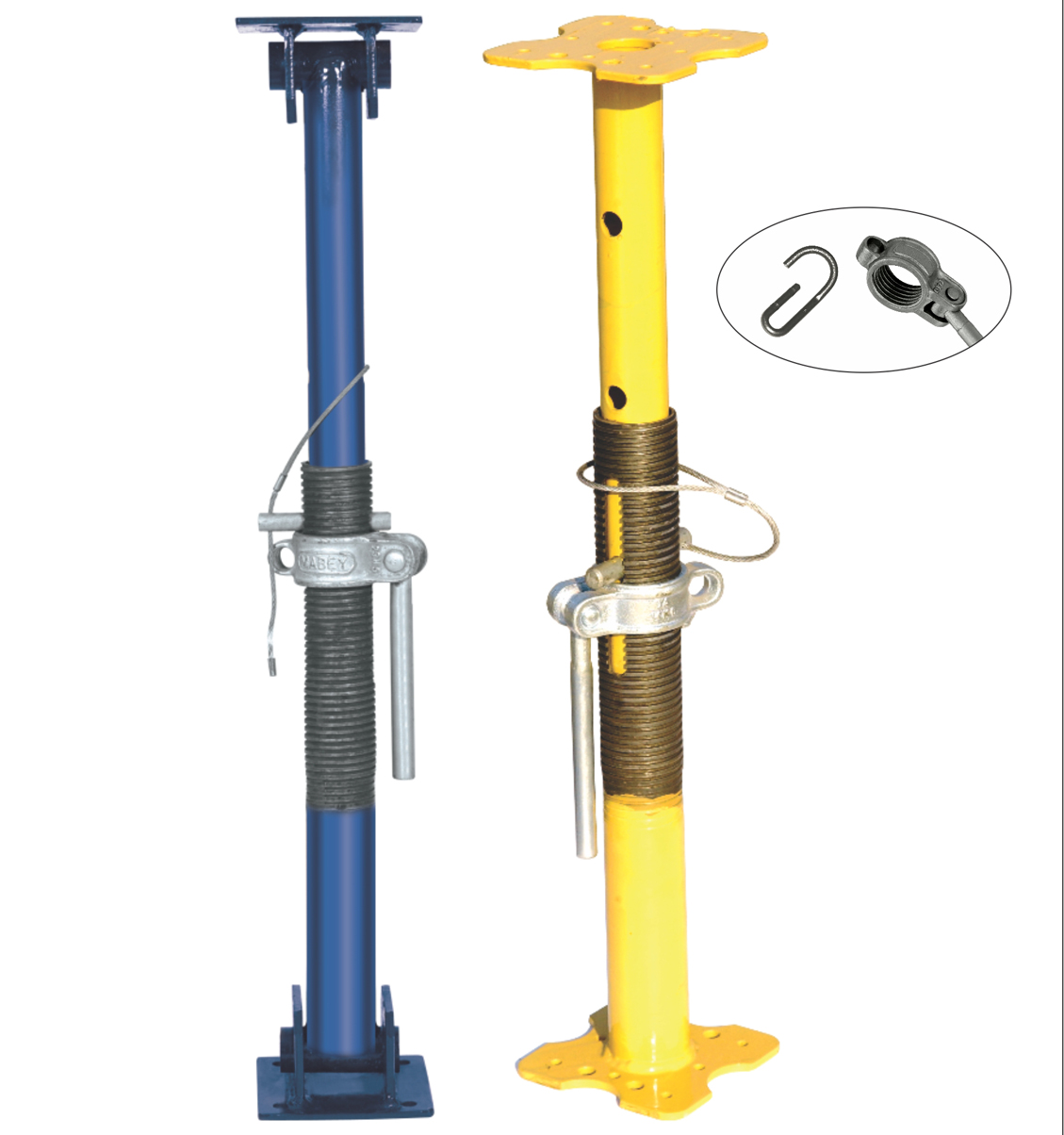

PROPS / POST SHORES FINISH : Hot Dip Galvanized, Painted and Electroplated

Sizes

Sizes: (in mtrs.)
Close Ht. / Open Ht.
1.07 / 1.82
1.75 / 3.12
1.98 /3.35
2.59 / 3.95
3.20 / 4.87

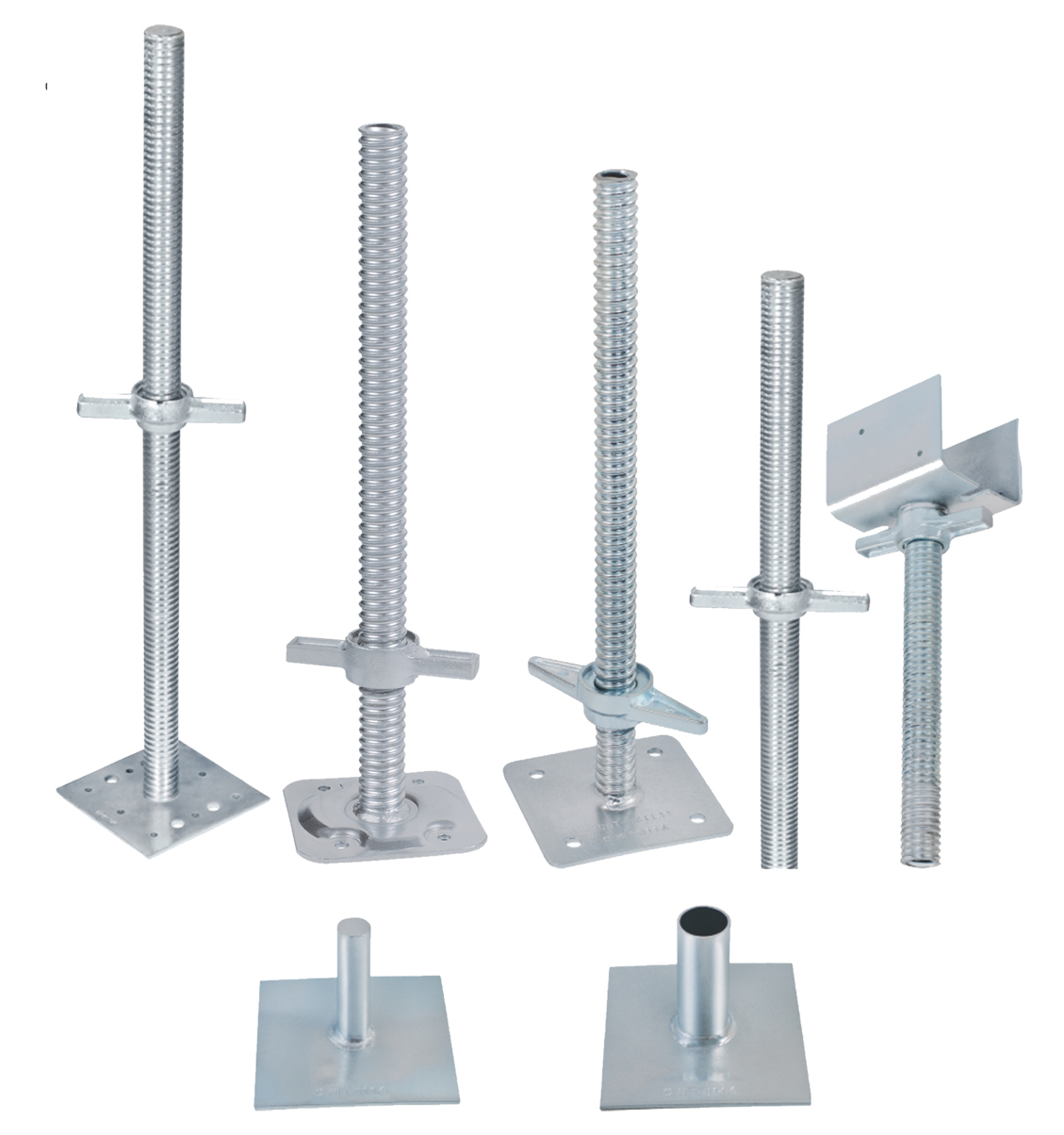

ADJUSTABLE JACKS (Solid & Hollow)

Sizes

Sizes: Length:450 / 550 / 650 / 750 / 850 / 1000mm, Rod Diameter: 32 / 34 / 38mm
Tube Diameter: 32 / 34 / 38 / 42 / 48 / 76mm Thickness: 4 / 5mm
Base Plate: 150 x 150 x 5 / 6 /

The Props are made as per BS EN 1065:1999, (Replaces 4074:1982). Munish has the capability to produce light and heavy duty Props of varying pipe thickness. Adjustable Props, Trench Struts, Push-Pull Adjustable Props with Swivel Head for light shoring are on their current range of production. Munish is well equipped to produce any Prop to customer specifications.

DIMENSIONS

Size	Weight (Kg)	Height (M)		Safe Working Load (KN)
		Close	Open	Close	Open
MP 0	12.023	1.19	1.82	35.00	35.00
MP 1	17.488	1.86	3.12	35.00	18.00
MP 2	18.268	2.08	3.33	35.00	16.00
MP 3	20.443	2.69	3.94	25.00	12.00
MP 4	24.453	3.35	4.86	17.50	10.00
